Polyester Spiral Dryer Fabrics Mesh

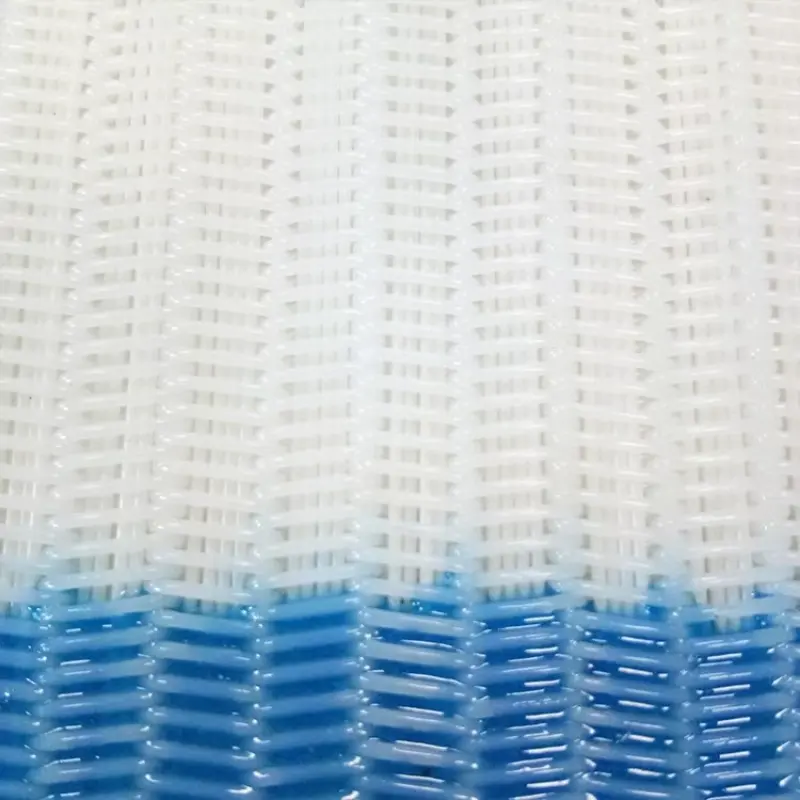

Spiral dryer fabrics are an endless construction comprising a plurality of helical formed loops of monofilament yarns.
Polyester spiral belts can operate as dryer fabrics, filter mesh screens or conveyor belts. Spiral dryer fabric is available in abroad air permeability range. Spiral fabrics are easy to fit and install, simple to clean and remain stable even after long running times of operation.
Features
Balanced Spiral mesh features a simple yet effective design, constructed from alternating left and right hand spiral coils. These coils are held in place by interconnecting crimp rods which run through the width of the belt. The edges of the belt can be supplied either welded or with a knuckled selvedge.
Balanced Spiral gains its excellent tracking properties by employing an alternating pattern which prevents the belt from pulling to one side. Lateral movement within the belt is reduced by the use of specially crimped rods which hold each spiral coil in place.
Balanced Spiral is most commonly supplied as friction-drive belt; however certain meshes can be supplied as Positive-Drive, allowing sprockets to engage with the belts mesh. Alternatively, we can supply Balanced Spiral with chain edges for high load applications.
Cross-Flights and Side Plates are available for inclined applications or product separation requirements. Wire Belt Company also supplies Double Balanced Spiral belting, for applications with particularly high load and/or for products which require a narrower aperture than is possible with standard balanced spiral belts.
Quality cross rods with larger diameter than spiral wires for higher durability.
Temperature range: -50°C to 1100°C.
Quick and easy to install.
Simple maintenance by replacing the broken parts easily.
Resistant to acid, alkaline, chemical, abrasion and corrosion.
Complying with food safety standards such as FDA, GMP and others up your request.
Features
| Items | Polyester Spiral Mesh Belt |
| Material | 100% polyester |
| Colors | Blue,White,Red |
| Type | Small loops /Medium loops/Big loops |
| Advantage | ♦ Use hot air to set the shape, evenly heat, and improve the service life of the mesh belt. ♦ Selected raw yarn, smooth surface,not easy to stick, easy to clean. ♦ High-temperature resistance, polyester up to 150°C, PPS up to 240°C.♦ Excellent chemical stability, BPA-free, Food grade certification. ♦ Seamless connection, no swelling at the joint, and the same air permeability in the whole filtering area. ♦ The width supports 10 cm to 10 meters, any length you need. ♦ Sealed edges for lasting, economical solutions. ♦ Easy to install, easy to repair. |
| Application | ♦ Food processing industry ♦ Pasta sector, for drying and pasteurization ♦ Ready-to-use produce sector, for washing vegetables ♦ Food processing industry, for drying of fruits ♦ Dairy industry, for filtration processes ♦ Fishing industry, for transportation |
Application
Suitable for pulp-liquor separator,high-pressure press-filter washer,horizontal belt washer,netting belt coal-washer,pulp washing,coal washin,wine chaff dehydration,bran vinegar dehydration,sludge dehydration,chemical industry.
Polyester Spiral Press-Filter Fabrics are mainly used in paper making, printing and dyeing, food, pharmaceutical, ceramics and solid-liquid separation industries like sludge dehydration
1.Dewatering of inert sludge quarries or mines
2.Dewatering of biological or chemical sludger from municipality sewage plants.
3.Pressing of grapes,fruit and others
4.Foodstuffs processing.
Four selling pointsrest assured to use
Pros and cons: The front is smooth, whichhelps the waterflow away quickly, Rough back,increased wearresistance withroller contact surface
Thread equalization technique: The net surface is flat, Resistance to tension
Far infrared hightemperature setting, Don’t run off
lmported AB rubber, edge sealing, Non rotten edgeLife for a long time
XURUI manufacturer high quality mesh belt for different industry application and machine, such as juice press, belt filter press, horizontal vacuum belt filter, food drying machine, paper machine, artificial board pavement machine, dryer paper machine, non-woven equipment, etc. Welcome to contact us to get suitable belt.
Goble Exhibition Show
Application area：
The main application industries of desulfurization fltercloth are gypsum desulfurization in power plants, lithiummica, potassium feldspar, petrochemicals, phosphoricacid, potassium salt, citric acid, chemical industry, aluminum industry, and various metallurgical benefciationindustries, as well as electroplating wastewater fltration.Its main characteristics are fast dehydration, easy un-loading, good cake stripping, strong wear resistance,and high stability.
Packaging and Transportation
Self provided logistics, strong production capacity, same day delivery for urgent orders
1. Can I have a sample order ?
A: Yes, we are welcome sample order to test and check quality. Mixed samples are acceptable.
2. What about the lead time ?
A: Sample needs about 3 days, mass production time needs about one week for order quantity more than.
3. What is your MOQ?
A: 100, 1pc for sample checking is available.
4. How do you ship the goods and how long does it take to arrive ?
A: Express and ocean ship, the express usually are DHL,UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline also optional.
5. Is it OK to print my logo
A: Yes. Pleas inform us formally before our production and confirm the desige firstly
based on our sample.
