Vacuum desulfurization filter cloth

Xurui filter cloth strictly selects imported raw materials certified by SGS in Germany, with a one-year warranty. It is woven with high tension on Swiss looms, with high warp and weft tightness, good stiffness, and high temperature setting without deviation. SIN plasma treatment does not block the mesh holes, and can increase annual income by 3 million yuan. Widely applicable to industries such as power plant desulfurization, chemical, metallurgical, steelmaking, cement, iron ore powder screening, coal washing, and tailings dry discharge.
Service life>100000 hours
Filter efficiency increased by 67
Production increased by 80%

Customization

Complete product range, providing customization.
Customized logo(Min. order 1 set).

Contact Us

Longer service life

1.Vacuum belt desulfurizedpress cloth, One service life is equivalent to 3 things.

2.Imported materials fromGermany|Warranty for one yearSuch as badreplacement.

Use an effect comparison diagram

1.Gypsum moisture content <10%

2.The thickness of the materiallayer is >1.5cm

3.To extend the service life l year

4.Gypsum is loaded directlyinto the car without drying

5.Easy to install in 3 minutes

Six detailed advantages of vacuum desulfurization pressure cloth

1.German AB rubberedge sealing,firmness increasesby 2 to 3 times

2.French KF steelbuckle, Moredurable and strong

3.Cover cloth andbuffer belt, airtightto reduce wear

4.3 layers twill, effectiveinterception rate99.99%

4.The weft wire adopts polyesterpolypropylene to improve acidand alkali resistance andcorrosion resistance

5.Positive andnegative densityprocess, positivedensity 260,negative density200

Four selling pointsrest assured to use

1.Pros and cons:The front is smooth, whichhelps the waterflow away quickly,Rough back,increased wearresistance withroller contact surface

2.󰄐Thread equalization technique:The net surface is flat,Resistance to tension

3.Far infrared hightemperature setting,Don’t run off

4.Imported AB rubber,edge sealing,Non rotten edgeLife for a long time

Four characteristics of Xurui press cloth

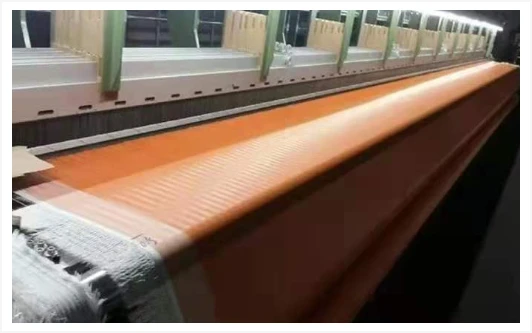

1.120 imported looms,Germany dornier,Strong production capacity.

2.Germany Belemimportmonofilament,Better wear resistance.

3.More than 40 patent technology,IS09001 international quality authentication.

4.Urgent orders aredelivered the same day,Self provided logistics

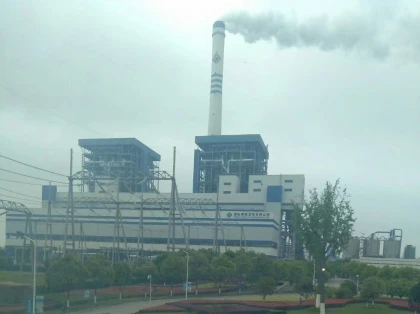

Widely used in

Packaging and Transportation

Self provided logistics, strong production capacity, same day delivery for urgent orders

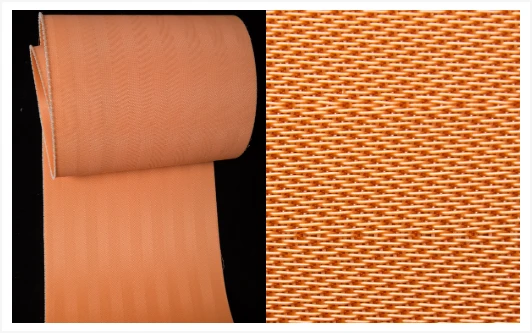

Filter cloth material PET (polyester, modified with Teflon)
Filter cloth structure Weaving net, 1% per layer (one and a half layers)
Finally finalized Heat-setting
Filter cloth specification(mm) 2800X56100
Thickness 1.2mm-2.3mm
Breathability (at 200pa) 9m3/m2 min、90L/dm2min
Meridian Monofilament 0.50mm
Meridian density 280.0 pieces/10cm
Latitude  Single filament 0.50mm and fine yarn (short fiber yarn) 150tex
Latitude density 206.0 pieces/10cm
Filtration 25~65um
Longitudinal tensile strength 255kg/m
Lateral tensile strength 150kg/m
Axial line Monofilament 0.50mm
Axial linear density 280.0 pieces/10cm
Circular line Single filament 0.50mm and fine yarn (short fiber yarn) 150tex
Circular line density 206.0 pieces/10cm
